Cylindrical Refiner Fillings: Selection and Performance Considerations for Paper Mills

Cylindrical Refiner Fillings: Selection and Performance Considerations for Paper Mills

Cylindrical refiner fillings are working components that act directly on pulp fibers within cylindrical refiners. In low-consistency refining, their geometry and condition influence fiber separation, loosening, and fibrillation. These effects can contribute to fiber flexibility and bonding potential, which in turn affect the characteristics of the finished paper sheet.

HUATAO Company develops cylindrical refiner fillings for paper manufacturers seeking to balance process requirements, equipment compatibility, wear resistance and operating reliability. Standard diameter options include 380 mm, 450 mm and 650 mm. Diameter, however, is only one part of a technically sound selection.

Working Structure and Material Characteristics

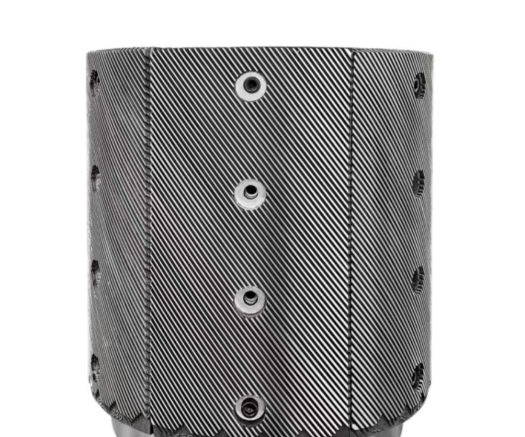

HUATAO cylindrical refiner fillings feature a serrated mechanical profile intended to support fiber treatment during refining. Wear-resistant materials help the working surface withstand repeated contact during continuous operation, while impact-durable construction is intended for demanding mechanical conditions.

Actual service life and process results depend on the equipment, furnish, operating parameters, contaminants, alignment and maintenance practices. Performance should therefore be assessed in the mill’s real operating context rather than assumed from a nominal specification.

Key Factors in Filling Selection

Equipment model and installation dimensions
Confirm the refiner manufacturer and model, existing filling specification, required diameter and width, mounting dimensions, available space and mating geometry. A nominally matching diameter does not guarantee that the part can be installed correctly.

Pulp furnish and operating range
Record the fiber source, furnish composition and incoming pulp condition. Consistency, throughput and the operating range define the conditions in which the filling must work. Different fiber systems may respond differently to the same mechanical treatment.

Refining targets
Clarify the fiber development and finished-paper characteristics that need to be maintained or improved. This connects the filling choice to the mill’s production and quality requirements.

A Practical Compatibility Review

A structured review can reduce the risk of dimensional mismatch and unsuitable process performance:

1. Identify the installed refiner and document the current filling and assembly details.
2. Compare the proposed diameter and installation measurements with the available 380 mm, 450 mm or 650 mm option.
3. Review furnish characteristics, pulp condition, consistency, throughput and normal operating parameters.
4. Define the required fiber development and paper quality outcomes.
5. Confirm installation and evaluate performance during a controlled production trial before standardizing the configuration.

Performance Verification

A filling should not be judged by appearance or diameter alone. Where possible, compare results under equivalent or carefully recorded operating conditions so changes in furnish, throughput or process settings do not distort the evaluation.

Monitor four areas: pulp response, relevant finished-paper properties, operating consistency and wear condition. Record whether fiber loosening and fibrillation remain consistent, apply the mill’s established quality-control methods, observe stability across the defined operating range, and inspect the working surface at planned intervals.

Wear Monitoring and Maintenance Planning

Wear is influenced by material selection as well as pulp properties, contaminants, operating conditions, equipment alignment and maintenance. Mills should set inspection intervals appropriate to their production schedule, document changes in the serrated profile and wear distribution, and investigate unusual impact marks, localized damage or uneven deterioration.

Relating inspection findings to pulp quality, process stability and paper performance provides a stronger basis for maintenance and replacement planning than relying only on operating hours.

Technical Support from HUATAO Company

HUATAO Company focuses on refiner fillings and wear solutions for pulp and paper processing. To support a meaningful technical review, paper manufacturers should provide the refiner model, existing filling information, detailed installation dimensions, photos or drawings of the mating structure, pulp furnish, operating conditions and required refining outcome.

With these details, HUATAO can assess whether a 380 mm, 450 mm or 650 mm cylindrical refiner filling may be compatible with the intended application. Final suitability should be established through dimensional checks, installation verification and controlled production evaluation.
