Technical Guide to Installation, Commissioning, Continuous Operation, and Troubleshooting of High-Consistency Refiner Plates

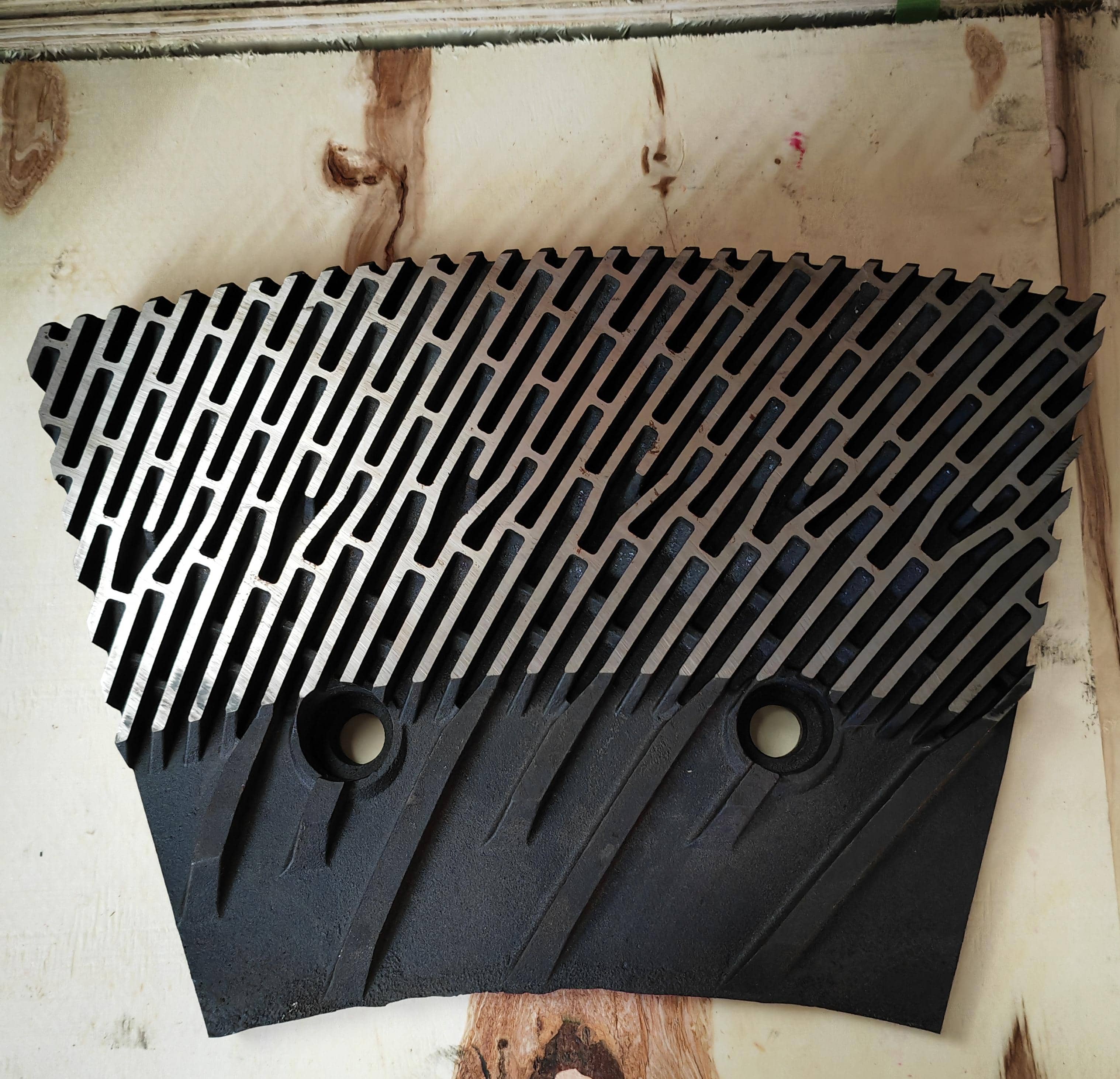

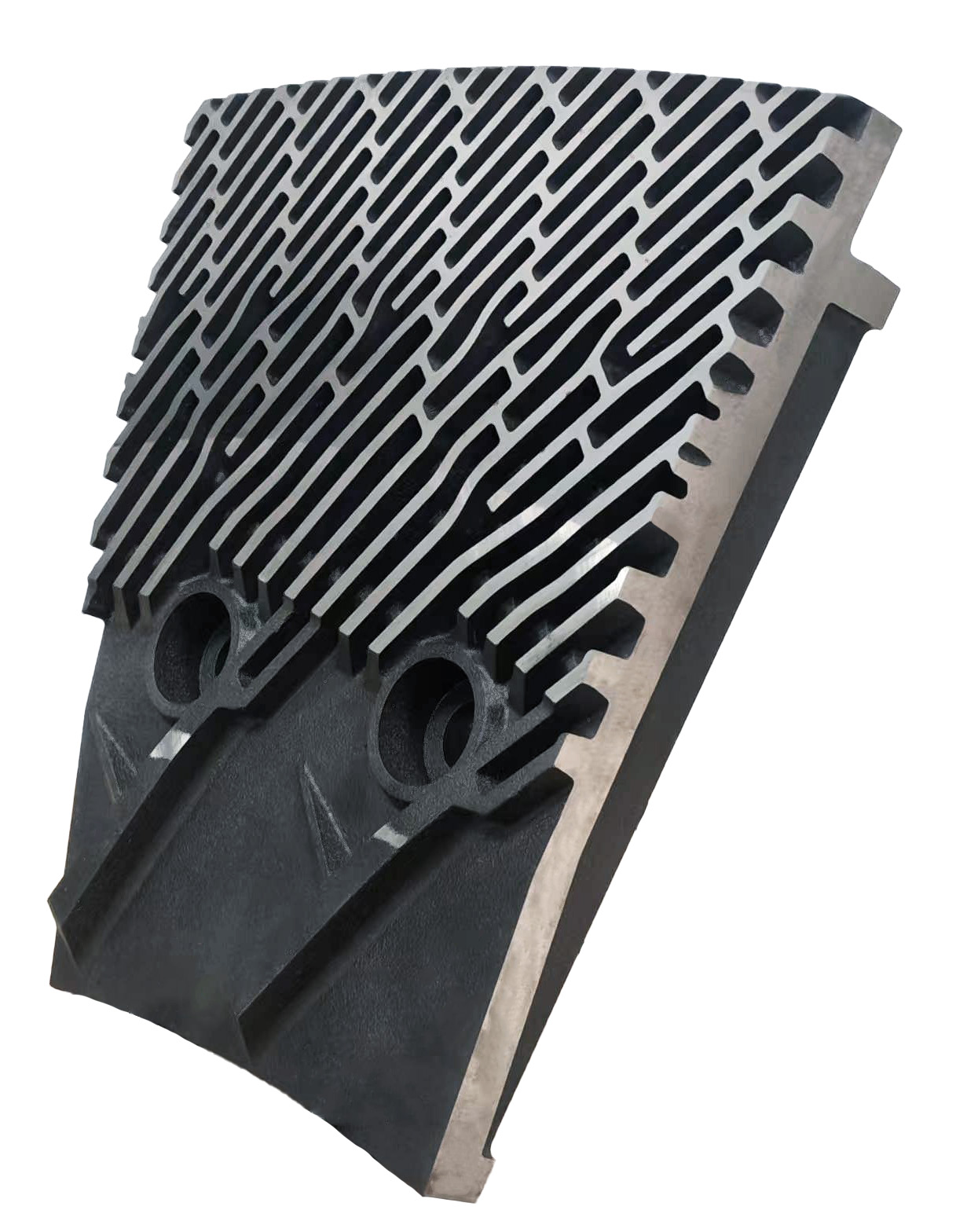

High-consistency refiner plates manufactured by HUATAO Company are designed for high-load treatment of chemical pulp, semi-chemical pulp, and fiberboard raw materials. By optimizing tooth geometry, these refiner discs facilitate effective fiber separation, dispersion, and fibrillation. Available in sizes ranging from 44 to 82 inches, refiner segments are selected based on production capacity, rotational speed, motor wattage, and structural parameters to ensure optimal performance in continuous, high-duty pulping environments.

This technical guide serves as an operational reference for pulp mill engineers, equipment operators, and maintenance directors. It details equipment matching protocols, pre-installation checks, no-load and load commissioning, 8Bar high-pressure monitoring, wear analysis, and emergency troubleshooting procedures.

1. Pre-Installation Matching Protocols

Selecting refiner plates based solely on outer diameter is a common operational oversight. Identical size dimensions may feature different mounting interfaces, rotation directions, pattern configurations, and material specifications. Thorough verification prevents vibration, contact friction, or reduced refining efficiency.

Mechanical Interface Verification

• Outer diameter, inner diameter, and actual plate thickness.

• Number of mounting holes, bolt circle diameter (BCD), and positioning mechanisms.

• Rotor and stator structural alignment and direction of rotation.

• Mating surfaces, hardware specifications, and locking mechanisms.

Machinery & Process Parameters

• Machine model and allowable segment dimensions.

• Motor power, speed range, and electrical load limits.

• Shaft runout tolerances and disc plate deflection.

• Pulp species, slurry consistency, flow rates, and target fiber morphology.

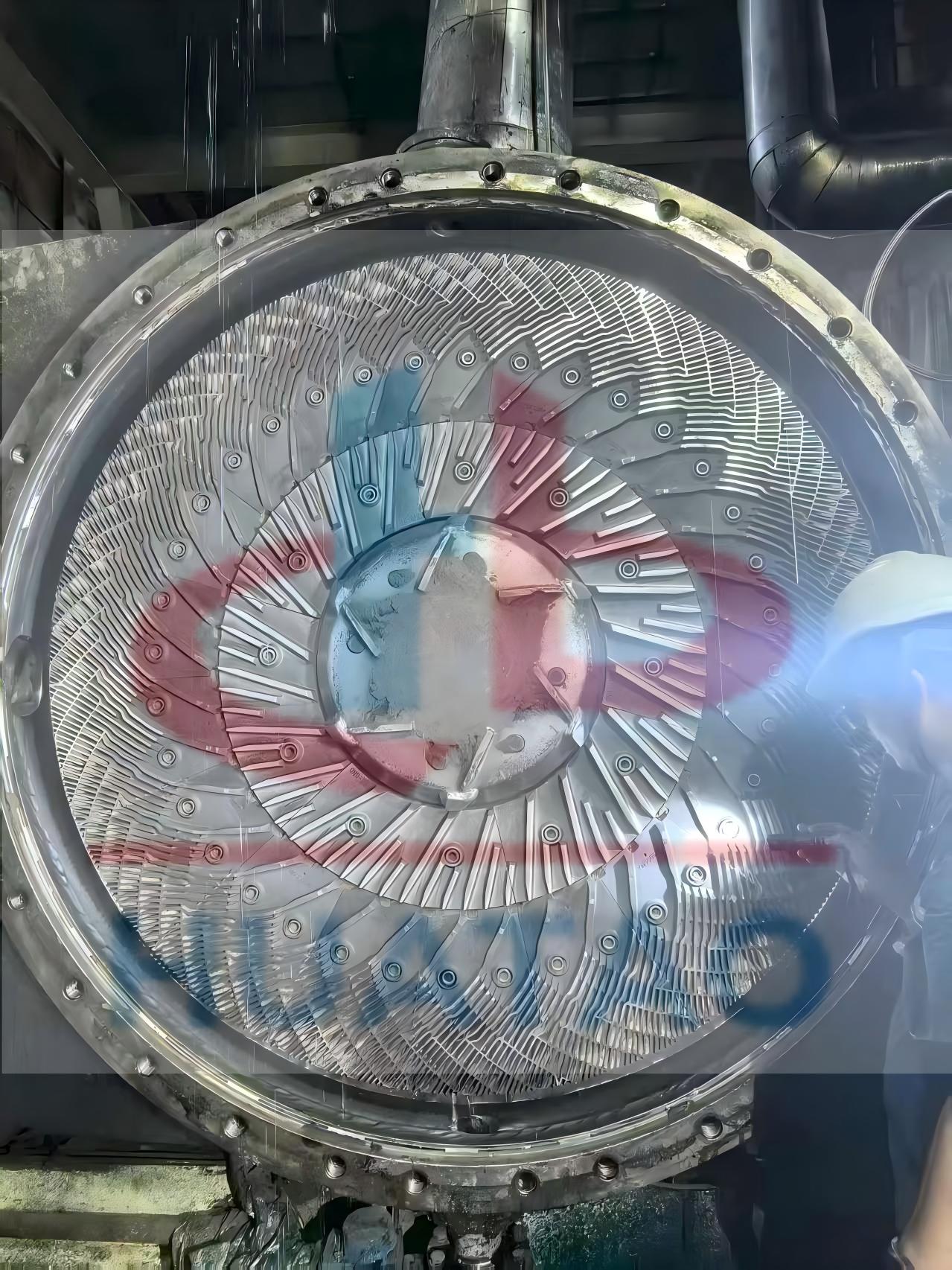

2. Refiner Plate Installation Sequence

1. Safety Isolation and Pressure Relief: Execute complete Lockout/Tagout (LOTO) procedures. Isolate slurry, steam, hydraulic, and pneumatic supplies. Verify that internal pressure is completely released before opening the grinding chamber.

2. Base Cleaning and Inspection: Remove old pulp residue, rust, and burrs from the mounting disc. Inspect threads and positioning surfaces for mechanical wear or damage.

3. Directional Identification: Verify rotor and stator positioning along with rotational direction using manufacturer drawings and disc markings.

4. Torque Application: Seat the segments flush and apply fasteners in a crosswise pattern, adhering strictly to OEM torque sequences.

5. Clearance Check: Rotate the assembly manually to confirm smooth rotation and establish initial plate gap settings. Never start the motor if rotational binding occurs.

3. Commissioning and High-Pressure Monitoring

Commissioning should follow a strict multi-phase methodology: Pre-Start Verification ➔ No-Load Rotation ➔ Incremental Feed Introduction ➔ Steady-State Sampling.

Monitoring Guidelines for 8Bar High-Pressure Operations

HUATAO refiner plates utilize specialized wear-resistant alloy compositions capable of continuous operation under pressures up to 8Bar. Note that 8Bar represents the structural capability of the plate; actual operating pressures must remain within the certified safe limits of the refiner housing, seals, valves, and piping.

• Pressure Trends: Monitor line pressure for sudden spikes caused by line blockages or valve misalignments.

• Power and Current: Evaluate motor load alongside freeness and fiber length measurements to determine true refining efficiency.

• Vibration and Sound: Maintain baseline vibration profiles. Sudden spikes indicate mechanical unbalance, rotor contact, or foreign object ingestion.

4. Wear Diagnostics and Maintenance Management

Refiner plate replacement intervals should be determined by performance trends rather than run-time hours alone. Track changes in specific energy consumption, fiber dispersion quality, and required gap adjustments over time.

Emergency Shutdown Triggers

Disconnect power and stop the system immediately under the following conditions:

• Metallic clashing, grinding noises, or sudden severe vibration.

• Electrical current or pressure parameters exceeding maximum safety thresholds.

• Failure of mechanical seals or high-pressure slurry leakage.

• Entry of foreign metallic or mineral debris into the grinding cavity.

Technical Support and Custom Inquiries

HUATAO Company provides customized engineering assessments based on refiner model, plate dimensions, pulp type, and target output metrics.
