Material : Polyurethane
Type: Screen Panel
Aperture Range : 0.045mm - 10mm
Feature： wear-resisting, noiseless , light etc
Usage : Derrick Stack Sizer
Size : TH48-30 , 1040*700mm , other size also can be designed as requests
Working Time : 6 months to 12 months

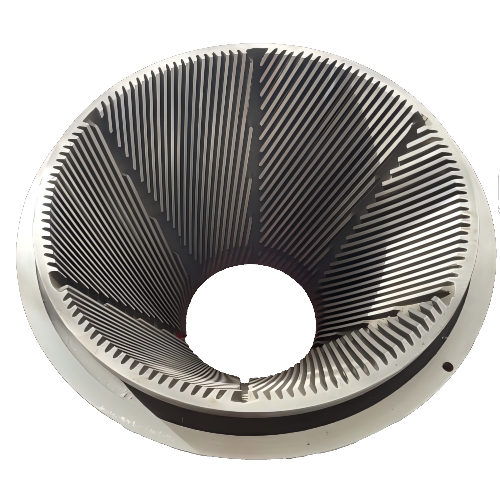

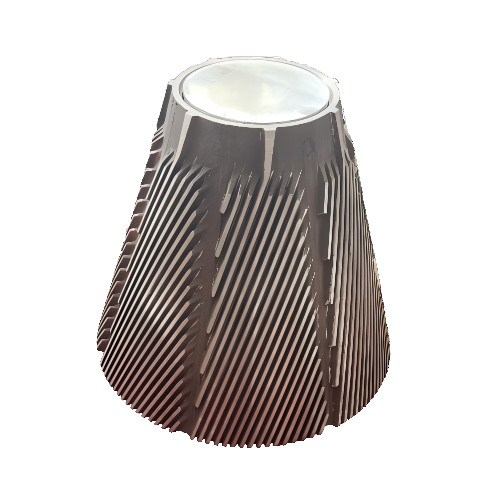

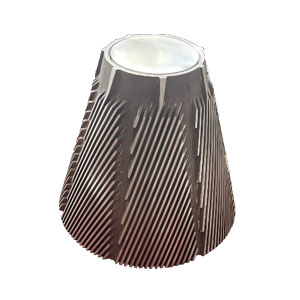

Conical refiner filling are an indispensable core component in the pulp and paper making industry and are specially designed for the fine grinding and refinement of paper pulp.
With its unique conical structure and high-quality materials, it can achieve efficient grinding at high speeds, ensuring even distribution of pulp fibers and improving paper quality and strength.
Whether it is traditional paper making or modern high-speed production lines, conical refiner filling can significantly improve production efficiency and reduce energy consumption.
They are an ideal choice for the papermaking industry to move towards green manufacturing.
Models:
HUATAO Conical Refiner Fillings is mainly used for Valmet Conical Refiner.
Conflo models: JC00, JC01, JC02, JC03, JC04, JC05
OPTIFINER models: RFO, RF1, RF2, RF3, RF4.
Valmet Conical Refiner Pro Model: Pro1, Pro2, Pro3.
|
HUATAO Model |
JC-01 |
JC-02 |
JC-03 |
JC-04 |
|
Rotor Size |
Φ460×360 |
Φ600×425 |
Φ750×515 |
Φ1000×590 |
|
Max Flow(L/min) |
2500 |
4000 |
8000 |
12000 |
|
Consistency |
3-6% |
3-6% |
3-6% |
3-6% |
|
Rotor Speed |
530-1200 |
470-1000 |
375-750 |
300-600 |
|
Power |
75-315 |
160-500 |
250-500 |
600-1500 |
|
A-Length |
1680 |
2300 |
2722 |
2875 |
|
Width |
820 |
840 |
1070 |
1270 |
|
B-Height |
1120 |
1070 |
1390 |
1610 |
