The plug screw feeder is mainly used in the chemical thermal mechanical pulping system and Medium Density Fiberboard MDF HDF production line.
The plug screw feeder is composited by bearing chamber, feeding box, plug screw feeder shaft, sleeve pipe, conical plug pipe and dewatering section unit. The filtrate collection cover device is installed on outside of the separated conical plug pipe and dewatering section unit.

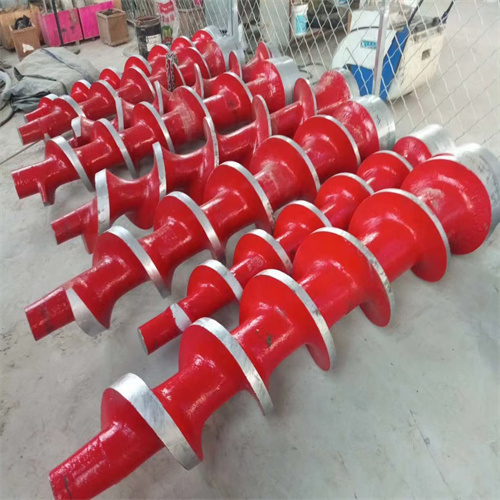

We engaged in providing professional tailored solution on plug screw feeder shaft according to client drawing,well matched with mostly plug screw feeder in the world,such as A-ndritz,V-almet and others.
Features
Cast by excelent stainless material,and surface hardening treatment and excellent wear resistance.
Optimizing the design of structure to reduce the possibility of block.
Optimizing the reduction rate, ensure the dewatering performance.
Feeding material high efficiency
Long term running stability
Installation safe and simply
Technical Parameters
|
Product Name |
Plug Screw Feeder |
|
Screw Diameter |
12inch -26 inch |
|
Material |
Stainless steel,High alloy wear-resistant steel |
|
Suitable Machine |

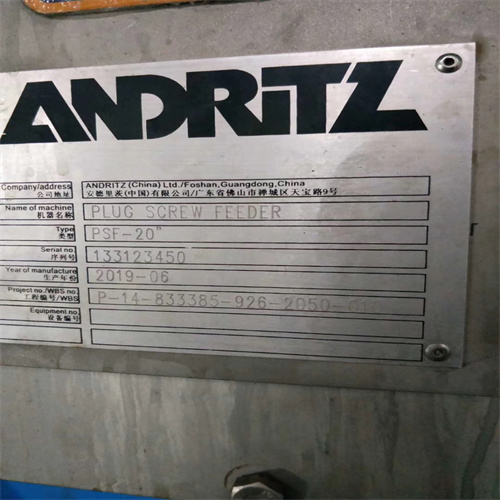

Andritz,Valmet,Sunds Metso,Zhongfoma, China SuFoma and other models |
