1.adopting energy-efficient motors, automated pressure regulation, and wear monitoring systems, reducing downtime.
2.Capacity 5-30 t/d
3.adjustable grinding gaps, wear-resistant refiner plates,
precise temperature control to ensure uniform fiber output.
4.Stable fiber quality, low energy consumption, and adaptability to various raw materials.

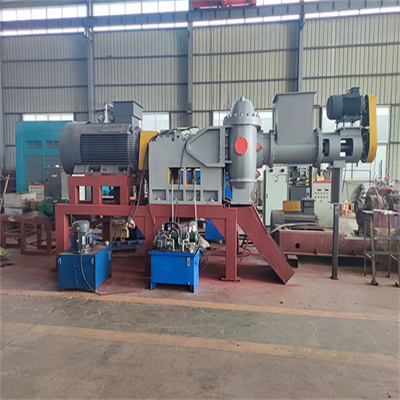

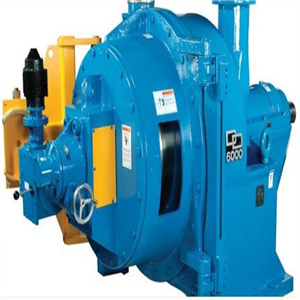

The MDF refiner,also called defibrator, is a core machine in fiberboard production, designed to process wood chips into high-quality fibers through thermo-mechanical pulping. It consists of a feeding system, preheating chamber, grinding disc assembly, and discharge unit.
Wood chips are steamed under high pressure to soften lignin, then fed into the refining zone where rotating discs separate them into fine fibers.
Features
1.adopting energy-efficient motors, automated pressure regulation, and wear monitoring systems, reducing downtime.
2.They support continuous production with capacities ranging from 5 to 30 tons/day, meeting industry demands for efficiency and consistency.

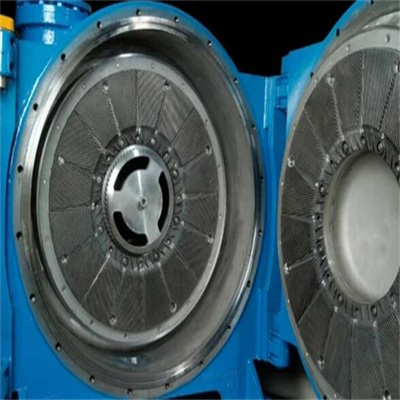

3.adjustable grinding gaps, wear-resistant refiner plates,
precise temperature control to ensure uniform fiber output.
4.Stable fiber quality, low energy consumption, and adaptability to various raw materials.
Technical Parameters
|
No. |
Model |
42 |
42 |
44 |
45/48 |
50/54 |
54/58 |
|
1 |
Capacity (t/d) |
5-7 |
＞7 |
10-11 |
13-18 |
20-26 |
26-30 |
| 2 |
Screw Diameterφ(mm/inch) |
φ355/14 |
φ355/14 |
φ406/16 |
φ406/16 |
φ457/18 |
φ500/20 |
| 3 |
Power (kw) |
250（DC） |
250(DC) |
315/355(DC) |
400(DC) |
450(DC) |
550(DC) |
| 4 |
Bottom Diameter (mm) |
φ1050 |
φ1050 |
φ1175 |
φ1175 |
φ1370 |
φ1600 |
| 5 |
Height (mm) |
7000 |
7000 |
9000 |
9000 |
9000 |
9000 |
| 6 |
Rotary Agitator Motor Power (kw) |
11 |
11 |
15 |
15 |
30 |
30 |
| 7 |
Trasfer Screw (kw) |
15 |
30(DC) |
30(DC) |
45(DC) |
75(DC) |
75(DC) |
| 8 |
Ribbon Screw (inch) |
N/A |
16 |
16 |
16 |
18 |
20 |
| 9 |
Main Motor (kw) |
1600- 2000 |
1600-2000 |
2240 |
3000-3550 |
4000-4500 |
4500-5600 |
| 10 |
Segment Diameter (inch) |
42/44 |
42/44 |
44 |
45/48 |
50/52/54 |
54/58 |
Application
MDF, HDF, and engineered wood products.
