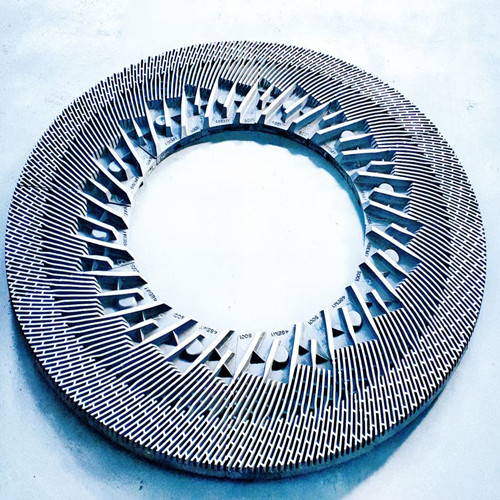

MDF (Medium Density Fiberboard) refiner plates are tools used in the wood processing industry for refining and grinding wood fibers to produce MDF. MDF is a type of engineered wood product made by breaking down wood fibers and combining them with resin adhesive under heat and pressure.

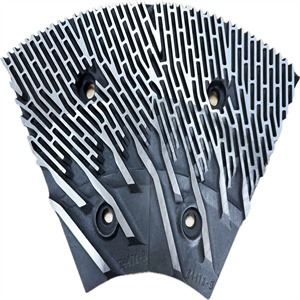

The refiner segments play a crucial role in the MDF manufacturing process by ensuring the uniformity and quality of the wood fibers. These plates typically have sharp edges or teeth that shred and refine the wood fibers, resulting in a smoother and more consistent material for the production of MDF panels.
Huatao often use high chrome alloy materials and precision grinding to design these refiner segments to withstand the demanding conditions of the wood processing industry and deliver optimal performance and longevity. They come in various sizes and configurations to suit different production requirements and various Andritz refiners setups.
We can also customize refiner segments as client special request.
Features
• Increase plate working lifetime
• Reduce plate breakage
• Reduce plate plugging problems
• Improve fiber quality
• Lower shive levels
• Reduced fines
• Lower furnish costs
• Increased refining capacity
• Energy savings
Technical Parameters
|
Material |
High Chrome Alloy Steel,Alloy |
|
Specification |
44inch |
|
Other Models |
38inch-62inch |
|
Production Technology |
Casting and Grinding |
|
Min Thickness |
30mm |
|
Hardness |
63 HRC |
|
Screw type |
M12 |
|
Screw holes |
2 |
|
Total quantity of segment per one circle |
12 segments |
|
Total quantity of segments per set (Rotor and Stator) |
24 segments per (one rotor and one stator) |
|
Packaging |
Wooden Box |
|
Suitable Refiner Model |
Andritz and others |
