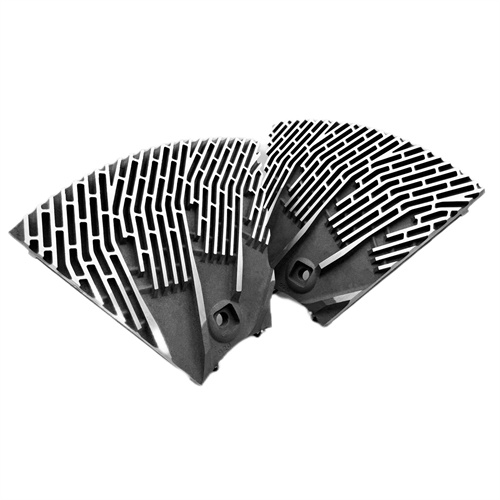

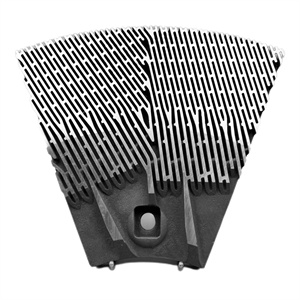

Sunds refiner plates generally refer to grinding discs or discs used in Sunds defibrator or other similar wood processing equipment. These refiner plates are key components in the equipment and are used to grind wood raw materials into fibers or fine particles for further processing into wood boards such as fiberboard and particleboard.
Features
1. Material: usually made of high-strength alloy steel or other wear-resistant materials to ensure long-term stable operation in high-speed rotation and high-pressure environments.
2. Design: The design of refiner plates usually includes multiple teeth or blades. The shape and arrangement of these teeth will affect the grinding effect and fiber quality.
3. Replaceability: The refiner plates is a wearing part and needs to be replaced after a period of use. Refiner plates for sunds defibrator are typically designed to be easily replaced to reduce downtime.
Technical Parameters
|
Material |
High Chrome Alloy Steel,Alloy |
|
Refiner Plate Diameter |
38-46inch |
|
Production Technology |
Casting and Grinding |
|
Hardness |
63 HRC |
|
Screw type |
M16,M18 etc |
|
Screw holes |
2,3,4 type |
|
Total quantity of segment per one circle |
12 or 8 segments |
|
Total quantity of segments per set |
24 or 16 segments per (one rotor and one stator) |
|
Suitable Refiner Model |
Sunds Defibrator MDF-300/MDF-400/MDF-500,etc |
Application
Fibreboard production: In fiberboard production, grinding discs are used to grind wood raw materials into fibers, which are then formed into boards by heat pressing.
Particleboard production: In particleboard production, grinding discs are used to grind wood raw materials into fine particles, which are then formed into boards by gluing and hot pressing.
Maintenance and Care
Regular inspection: Regularly check the wear of the grinding discs and replace seriously worn grinding discs in a timely manner to ensure production efficiency and product quality.
