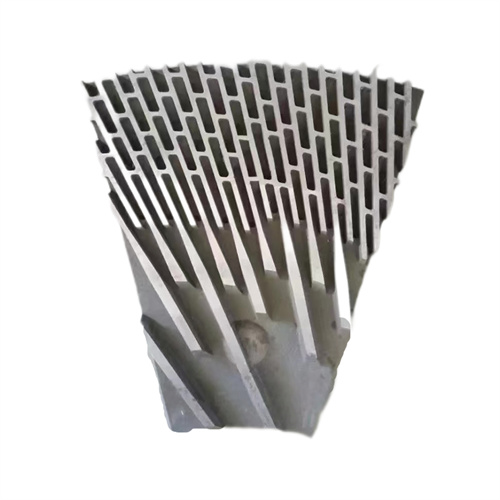

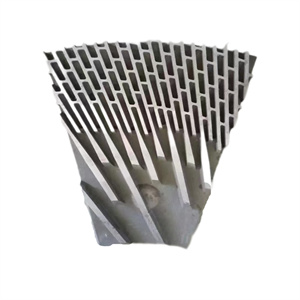

Dieffenbacher is a globally renowned manufacturer of machinery and equipment, especially in the fields of wood processing, composite materials and hydraulic systems. Dieffenbacher's abrasive fillings are commonly used in its equipment for the production of fibreboard, particleboard and other wood-based panels. These refiner fillings are key components in the equipment and are used to grind wood raw materials into fibers or fine particles.
Features
1. High-quality materials: Dieffenbacher refiner fillings are usually made of high-strength, wear-resistant alloy steel or other advanced materials to ensure stable operation for a long time in high-speed rotation and high-pressure environments.
2. Precision design: The design of the refiner fillings usually includes multiple teeth or blades whose shape and arrangement are precisely calculated to optimize the grinding effect and fiber quality.
3. Efficient performance: Dieffenbacher refiner fillings are designed to efficiently process large quantities of wood raw materials, ensuring high efficiency and high quality in the production process.
Technical Parameters
|
Material |
High Chrome Alloy Steel,Alloy |
|
Refiner Plate Diameter |
42-45inch |
|
Production Technology |
Casting and Grinding |
|
Hardness |
63 HRC |
|
Screw type |
M16 |
|
Screw holes |
2 |
|
Total quantity of segment per one circle |
12 segments |
|
Total quantity of segments per set |
24 segments per (one rotor and one stator) |
|
Suitable Refiner Model |
Dieffenbacher SWPM Refiners CPS300/CPS400/CPS500 Contiroll300/ContiRoll400/ContiRoll500 |
Application
Fibreboard production: In fiberboard production, refiner fillings are used to grind wood raw materials into fibers, which are then formed into boards by hot pressing.
-Particleboard production: In particleboard production, refiner fillings are used to grind wood raw materials into fine particles, which are then formed into boards by gluing and hot pressing.
Maintenance and Care
Regular inspection: Regularly check the wear of the refiner fillings, and replace seriously worn refiner fillings in a timely manner to ensure production efficiency and product quality.
Cleaning: Keep the refiner fillings and equipment clean to prevent the accumulation of wood chips and impurities, which may affect the operation of the equipment.
Professional maintenance: It is recommended that professional technicians perform the replacement and maintenance of refiner fillings to ensure the normal operation of the equipment and extend its service life.
