Maximizing Processing Efficiency with Custom-Engineered Palm Oil Mill Conveyors

Durable Material Transport Solutions Built to Withstand Abrasion, High Torque, and Continuous Operations

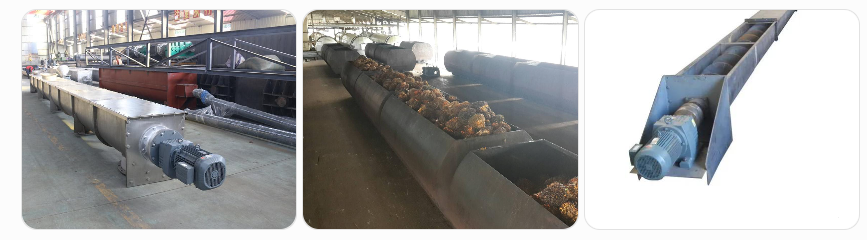

Palm oil processing facilities require robust bulk material handling systems to sustain non-stop production targets. Conveyor screws, expeller press shafts, and replacement flights play an essential role in keeping production lines moving cleanly across threshing, pressing, kernel recovery, and biomass handling operations.

Because process materials vary from soft fruitlets to hard palm kernels and highly abrasive EFB fibers, conveyor components must be engineered to resist simultaneous mechanical impact, friction wear, and chemical exposure.

Technical Insights into Mill Conveyor Wear Mechanisms

Conveyor screws located under threshing units, within press discharge areas, or along fuel feed lines suffer accelerated degradation due to distinct environmental stress factors:

1. Abrasive Wear: Fine silica, sand particles, and rigid shell fragments scrape continuously against metal flights.

2. Impact Loading: Large or unevenly chopped EFB chunks create cyclic shock loads at feed hoppers.

3. Corrosive Action: Organic acids combined with high water content corrode exposed metal surfaces.

4. Thermal Stress: Process steam and frictional heating require thermally stable steel alloys.

5. Dynamic Overloading: Material jams lead to extreme torsional loads that risk bending shafts or shearing keyways.

Modern custom fabrication addresses these factors through precise metallurgical selection, specialized heat treatments, and optional hardfaced surface coatings applied directly to high-wear flight edges.

Streamlined Reverse Engineering Without OEM Drawings

Losing original machinery drawings is a frequent challenge during plant overhauls. Replacement screw assemblies can be re-engineered accurately using basic physical parameters captured directly from installed equipment:

• Total unit length and segmented section measurements

• Flight outer diameter, shaft diameter, and flight pitch distance

• Flight thickness profile across root and tip dimensions

• Shaft drive connection details, keyway sizes, and journal dimensions

• Overall spatial constraints, bearing mounting positions, and inlet/outlet flanges

Detailed photographs of worn parts further assist engineers in identifying high-wear zones and adding extra structural reinforcement where needed most.

Flexible Maintenance & Replacement Strategies

Depending on the operational condition of existing equipment, plant managers can choose from three main repair pathways:

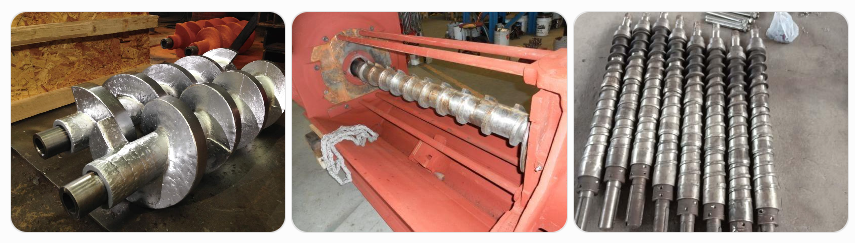

• Flighting Replacement: Replacing worn flight segments while retaining the reusable inner shaft.

• Shaft Renewal: Replacing damaged or bent shafts while maintaining existing conveyor housings.

• Complete System Fabrication: Replacing the entire screw assembly with upgraded wear-resistant materials and heavy-duty shaft designs to ensure long-term operational stability.

Contact Information for Engineering Support

HUATAO supplies custom-built screw conveyors, press shafts, and wear-resistant replacement flights for palm oil mills globally.

Contact Details: Company: HUATAO WhatsApp: +86 15373883537
