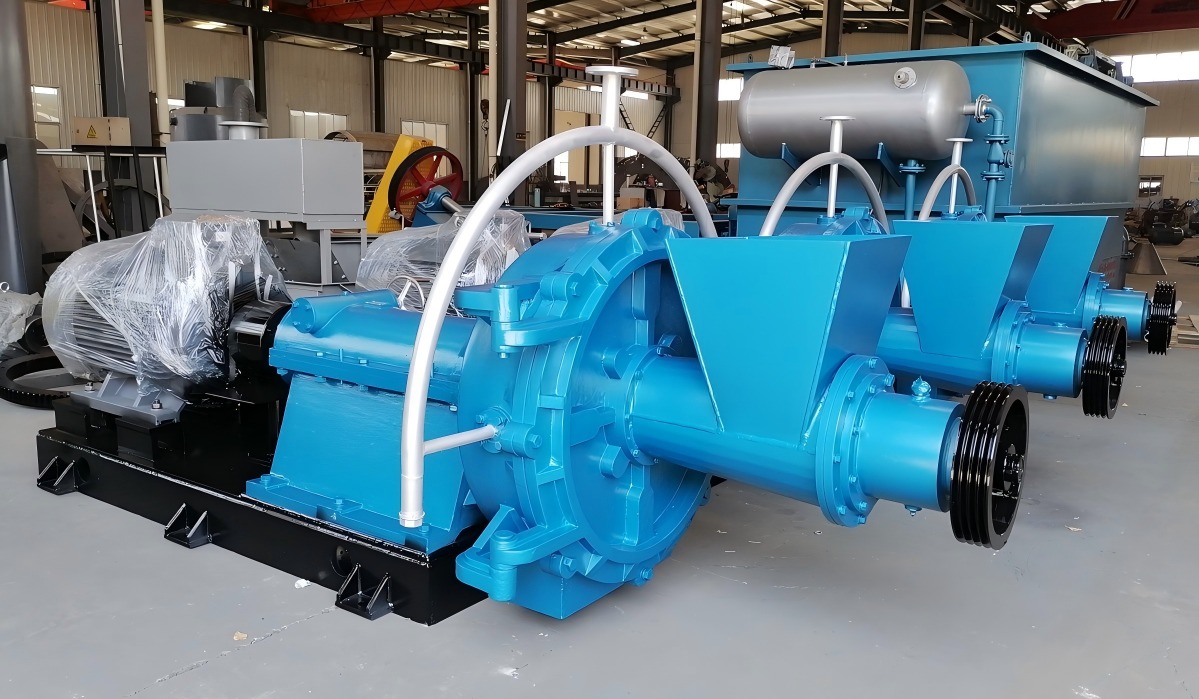

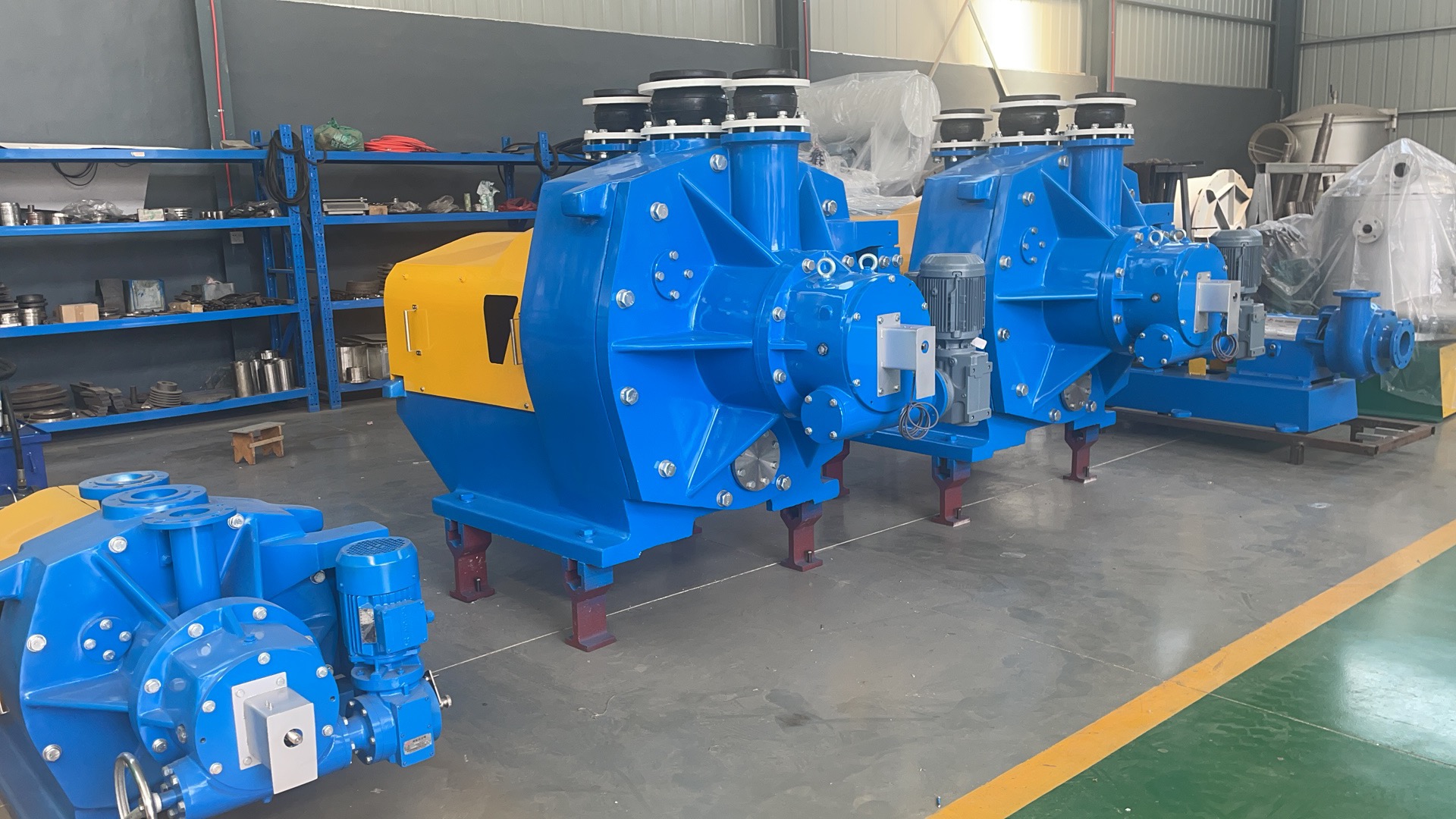

High-Consistency Energy-Saving Refiners and High-Efficiency Pressure Grinding Systems

In modern pulp preparation and industrial fiber processing, selecting the right refining equipment significantly impacts final product strength, energy consumption, and operating margins. The latest generation of High-Consistency Energy-Saving Refiners represents a major structural and functional evolution over traditional high-density pulping machinery, combining variable frequency forced feeding with advanced mechanical pressure stabilization.

Comprehensive Raw Material Adaptability

These versatile units process a wide spectrum of lignocellulosic and organic inputs. They excel in handling chemical pulps, semi-chemical mechanical pulps, and high-yield cold-soaked pulps. Furthermore, they effectively process heterogeneous feedstocks including timber processing offcuts, shavings, sawdust, pulping rejects, and agricultural residues such as reed chips, rice/wheat straw, and cotton stalks.

In specialized industrial applications, high-efficiency pressure grinders are equally proficient in processing organic matter, algae, animal bones, tobacco stems, and crop by-products into high-grade organic fertilizers, livestock feed components, or clean fiber pulps.

Operating Mechanism and Refining Dynamics

The working cycle begins as raw slurry is fed into the machine via a heavy-duty screw conveyor. An impeller mounted on the main shaft flings the incoming material into the primary breaking zone positioned between the two refining discs.

With a rotational linear velocity reaching 2,750 m/min, the raw mass transitions rapidly through coarse and fine grinding zones, where high-shear mechanical forces perform precise fiber separation. The refined stock is then discharged smoothly into storage chests. Refiner plates feature specialized metallurgy and custom tooth profiles tailored to specific raw material characteristics.

Engineering Advantages Over Traditional Refiners

Automatic Pressure Equalizing System: Located on the main shaft, this mechanism ensures uniform pressure distribution during material compression, increasing throughput while preventing excessive fiber cutting.

Real-Time Laser Gap Sensing: Laser displacement sensors display the precise clearance between refiner plates, enabling accurate manual or automated adjustments.

Heavy-Duty Drive Assembly: Features expanded bearing spans, forced oil-bath lubrication, liquid cooling channels, and real-time bearing thermal monitoring to prevent catastrophic mechanical failures.

Precision Feed Control: Enlarged feed screw mechanisms integrated with VFD control guarantee uniform, high-volume material delivery into the refining zone.

Structural Integrity: Dynamic balance testing minimizes operational vibration and noise, while a heavy cast-steel housing offers maximum resistance to physical wear and mechanical impact.
