MDF Refiner Feeding Screw Installation, Replacement and Maintenance Guide

Importance of Proper Screw Maintenance

The feeding screw directly influences the stability of the refining process. Excessive wear on screw flights, shafts, or supporting components may result in:

• Unstable material feeding
• Increased energy consumption
• Equipment vibration
• Reduced production efficiency
• Unexpected maintenance downtime

Implementing a preventive maintenance plan can significantly improve equipment performance.

MDF Refiner Feeding Screw Replacement Process

1. Equipment Shutdown and Safety Preparation

Before replacement work begins, the entire system must be completely stopped.

The power supply should be isolated according to Lockout/Tagout  safety requirements. Remaining materials inside the screw feeder must also be removed before maintenance.

2. Removal of Existing Screw Components

The worn screw assembly should be carefully removed after dismantling the inspection cover, bearing housing, coupling, and related connection parts.

Professional lifting equipment is recommended to avoid mechanical deformation and ensure safe removal.

3. Inspection Before Installation

Before installing a new screw, technicians should inspect:

• Conveyor housing condition
• Wear liners
• Bearings
• Sealing system
• Drive components

Replacing damaged auxiliary components at the same time can improve long-term operating reliability.

4. Installation and Alignment

During installation, correct positioning is critical.

The new screw should have:

• Correct rotation direction
• Proper shaft alignment
• Suitable clearance between flight and housing
• Secure mechanical connections

Incorrect installation may accelerate wear and cause abnormal vibration.

5. Testing and Commissioning

After installation, a no-load test should be performed.

Operators should check:

• Rotation stability
• Noise level
• Vibration condition
• Possible contact between screw and housing

The equipment can return to normal production after successful testing.

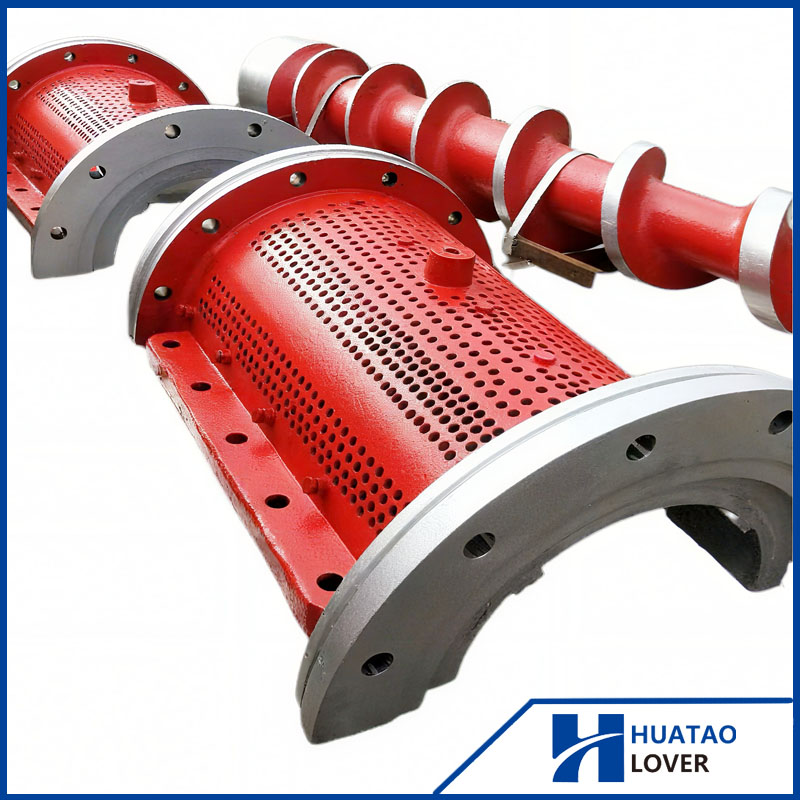

If you need any plug screw feeder and compression housing as well as mdf refiner segment, welcome to contact us directly.
