HUATAO Worm Gear Grinding Wheels advantages：
High Grinding Efficiency; High Precision; Excellent Surface Quality; Excellent Stability.
Applications：
Used for grinding various types of worms and worm wheels, such as straight worms, spiral worms, and circular arc worms. Worm grinding wheels are also widely used for grinding various gears, such as cylindrical gears, bevel gears, and planetary gears. By using worm grinding wheels, the accuracy, surface quality, and stability of gears can be effectively improved.
Technical Parameter:
| D | T | H | Modulus | pressure angle |
| 220 | 180 | 76.2 | 1-8 | 15 /20 degree |
| 240 | 230 | 90 | 1-8 | 15 /20 degree |
| 250 | 50 | 110 | 1-8 | 15 /20 degree |
| 275 | 125 | 127 | 1-8 | 15 /20 degree |
| 300 | 63, 80, 100, 125, 145 | 160 | 1-8 | 15 /20 degree |
| 350 | 63, 84, 104, 125, 150 | 160 | 1-8 | 15 /20 degree |
| 400 | 84, 104 | 160 | 1-8 | 15 /20 degree |
| 400 | 80, 100, 125 | 160 | 1-8 | 15 /20 degree |
| 450 | 84, 104 | 203 | 1-8 | 15 /20 degree |

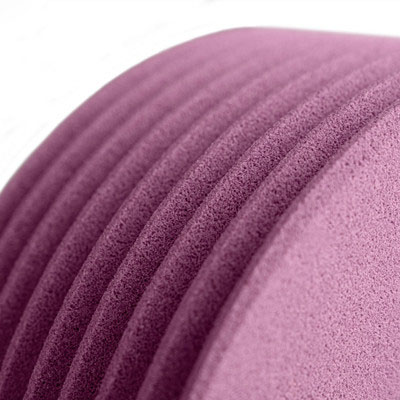

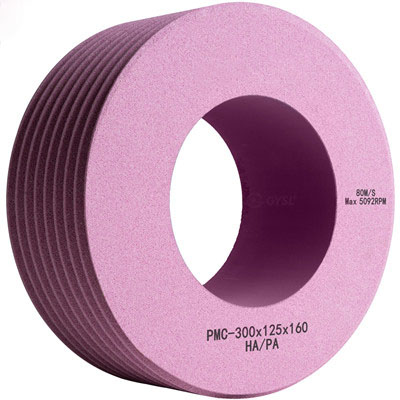

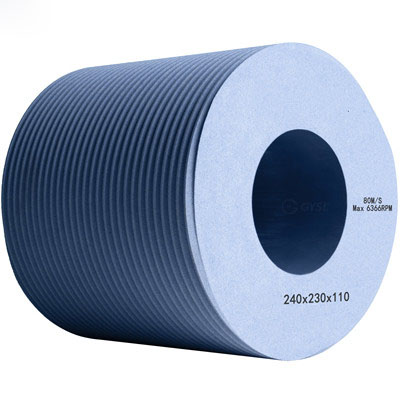

Photos：
