Description：

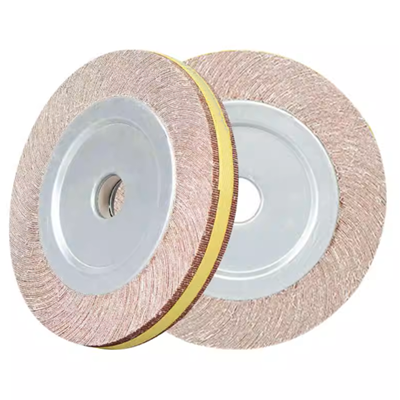

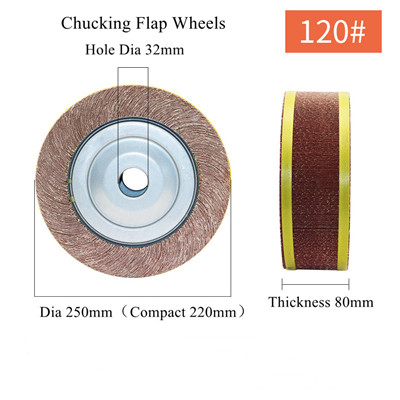

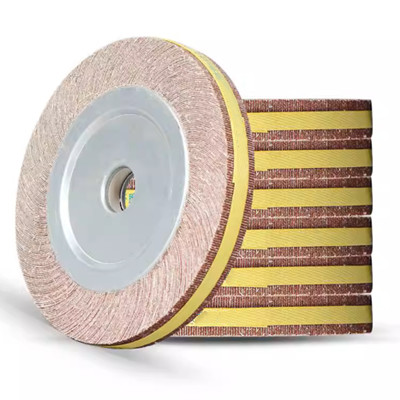

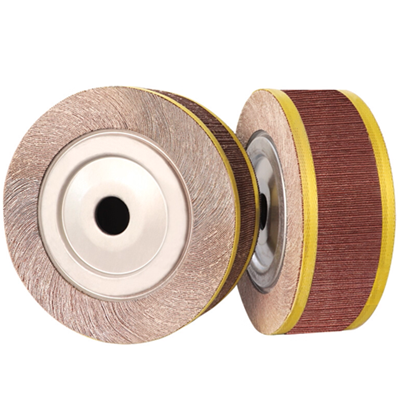

A chuck-type flap wheel (or flap wheel) is a type of abrasive wheel. Made from a resin-based abrasive cloth, it features a fan-shaped, radially arranged wheel-shaped coated abrasive. It can be used with pneumatic and air-powered tools and is suitable for polishing and grinding various irregular surfaces.
Application:
It is widely used in various industries, including automotive manufacturing, heavy machinery, shipbuilding, stainless steel, aluminum alloys, hardware, and decorative industries for grinding, polishing, finishing, and rust removal. Chuck-type flap wheels (or flap wheels) are highly effective for surface polishing and internal grinding of finished metal parts.
Technical Parameters:
| Model | Size OD X Height X Diameter(mm) | Maximum Speed | Sand Degrees |
| HT01 | 100 X 25 X H | 9500 | P40-600 |
| HT02 | 125 X 25 X H | 9500 | P40-600 |
| HT03 | 125 X 30 X H | 6800 | P40-600 |
| HT04 | 150 X 25 X H | 6800 | P40-600 |
| HT05 | 150 X 30 X H | 6800 | P40-600 |
| HT06 | 200 X 25 X H | 4800 | P40-600 |
| HT07 | 200 X 30 X H | 4800 | P40-600 |
| HT08 | 200 X 50 X H | 3800 | P40-600 |
| HT09 | 200 X 25 X H | 3800 | P40-600 |
| HT10 | 200 X 30 X H | 3800 | P40-600 |
| HT11 | 300 X 25 X H | 3200 | P40-600 |
| HT12 | 300 X 30 X H | 3200 | P40-600 |
| HT13 | 300 X 50 X H | 3200 | P40-600 |
| HT14 | 350 X 25 X H | 2700 | P40-600 |
| HT15 | 350 X 30 X H | 2700 | P40-600 |
Photos :
